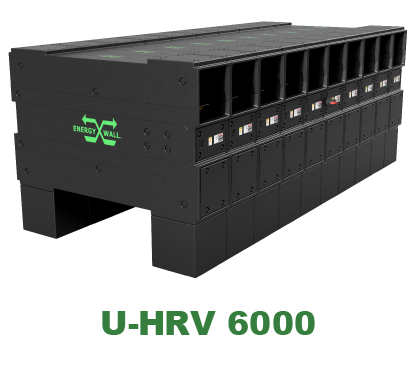

U-HRV 6000 Series​

U-ERV 6000 Standard Features Industry Standard Comparison
Airflow Range:0 to 8000 CFM [6000 Rated]Fully Variable ECM+ Remote Fan Modulation
Dimensions:54” L X 32” D X 12” Height [x2]2-4X Smaller Size
Ultra Lightweight:980 lbs [98 lbs per module]2.5X Lighter (Varies by Options)
AHRI 1060 Tested Core:EWT-11-42 [x10]Counterflow plate-type, heat and humidity transfer
 HWT-11-42 [x10]Counterflow plate-type, heat-only transfer or condensing wrap-around application
Sensible Efficiency:73% @ 6000 SCFMUp to 90% Possible
Latent Efficiency:63% @ 6000 SCFMUp to 70% Possible
Total Efficiency:69% @ 4800 SCFMUp to 80% Possible
Exhaust Air Transfer:ZeroGood for Bathroom Exhaust, Laboratories, Hospitals
Cost:Lowest InstalledLower transport, installation, maintenance and fan energy costs
Minimal Maintenance:Filters @ 3-6 monthsTotal qty. 40, MERV 8: 21”X 5.25“ X 2” (Actual Size)
Stack Multiple Modules:Vertical or HorizontalPatented design – a single duct will connect to multiple U-ERVs
Fan Motors:ECM+>1.0 CFM/Watt @ 6000 SCFM
 IP68 RatedVariable Airflow adjustability & balancing with mechanical turn potentiometers
  Remote Variable Airflow adjustability via 0-10V signal
Antimicrobial Membrane:Salt / CeramicProven highly antimicrobial without the addition of additives
Like a UV Light:MERV 11 EquivalenceActively kills bacteria flowing with both airstreams
Non-Fused Disconnect:Exterior Rated UL98Lowers Installed Cost – Defeatable Lockout For Safe Access
Application:Any OrientationUniversal Compatibility for Bolt-on, Roof-top, Exterior or Interior Installation
Electrical Power:Universal Input AC or DC90 to 264 VAC Input (50/60Hz) or 40 to 370 VDC Input
Extreme Exterior Shell:Carbon Infused PolypropyleneCorrosion Proof, double wall construction
  Nano-particle metal-oxide insulation

                                    External Static Pressure at 6000 SCFM         90 to 264 VAC Input (50/60 Hz)                40 to 350 VDC Input

  SupplyExhaustWeight120 VAC230 VAC208 VAC55.2 VDC255 VDC255 VDC
Model NumberType(in. w.g.)(in. w.g.)(lbs.)1Ø(Amps)1Ø(Amps)3Ø(Amps)(Amps)(Amps)(Amps)
UHRV 6000LLSensible0.50.598078.545.827.9162.035.125.6
UHRV 6000HHSensible2.02.01060135.769.642.4257.055.640.5
UHRV 6000LHSensible0.52.01020107.157.735.2210.045.533.1
UHRV 6000HLSensible2.00.51020107.157.735.2210.045.533.1
