Specifications
Models
Dimensions
Specifications

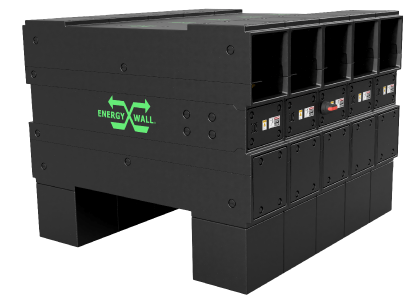

U-ERV 3000 Standard Features Industry Standard Comparison
Airflow Range: 0 to 3750 CFM [3000 Rated] Fully Variable ECM Remote Fan Modulation
Dimensions: 54” L X 32” D X 60” Height 2-4X Smaller Size (12″ Height per module)
Ultra Lightweight: 460 lbs 92 lbs. per module for transport, 18.5 lb per fan cube. 645 lb. total unit weight.
AHRI 1060 Tested Core: EWT-11-42 Counterflow plate-type, heat and humidity transfer
HWT-11-42 Counterflow plate-type, heat-only transfer or condensing wrap-around application
Sensible Efficiency: 73% @ 3000 SCFM Up to 90% Possible
Latent Efficiency: 63% @ 3000 SCFM Up to 70% Possible
Total Efficiency: 69% @ 3000 SCFM Up to 80% Possible
Exhaust Air Transfer: Zero Good for Bathroom Exhaust, Laboratories, Hospitals
Minimal Maintenance: Filters @ 3-6 months Total qty. 10, MERV 11: 5.00” x 40.5“ x 2.0” (Nominal)
Stack Multiple Modules: Vertical or Horizontal Patented design – a single duct will connect to multiple U-ERVs
Fan Motors: ECM Variable Airflow adjustability & balancing with mechanical turn potentiometers
Remote Variable Airflow adjustability via 0-10V signal
Antimicrobial
Membrane:
Salt / Ceramic Proven highly antimicrobial without the addition of additives.  Actively kills bacteria flowing with both airstreams.
Non-Fused Disconnect: UL98 Rated Lowers Installed Cost – Defeatable Lockout For Safe Access
Application: Any Orientation Universal Compatibility for Bolt-on, Roof-top, Exterior or Interior Installation
Electrical Power: 208 – 230 AC 3 Phase VAC Input (50/60Hz)
Extreme Exterior Shell: Polypropylene Corrosion Proof, double wall construction
Nano-particle metal-oxide insulation

,

Models
                                    External Static
                                    Pressure at 3000 SCFM
Model Number Type Supply (in. w.g.) Exhaust (in. w.g.)

Unit Weight (lbs.)

Fan Cube Weight (lbs.) (ea.)

Power 208 VAC 3Ø(Amps)

FLA MCA MOP
U-ERV 3000 Enthalpy 2.0 2.0 645 18.5 26.2 27.0 30
Dimensions
